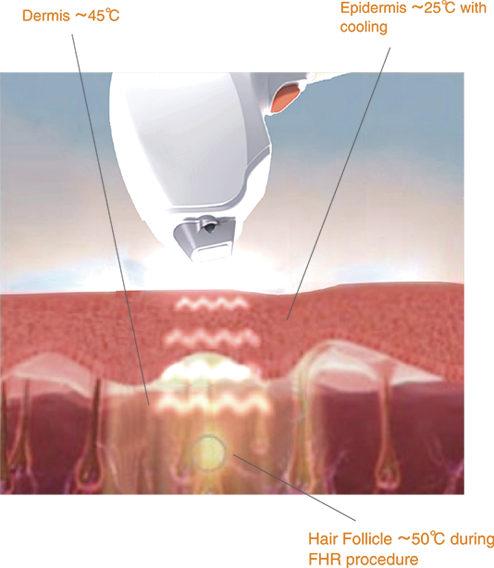

Working Mechanism

808nm wavelength effectively penetrates deep into and absorbed by the target chromophore.

The adequate pulse duration, energy density and epidermal cooling ensure an adequate thermal damage to the target tissue without damaging the surrounding tissue to achieve effective hair removal.







Machine Features

Fast Hair Removal (FHR / HR)
Effective for Any Color Hair Widely Used for Any Skin Type


  • ① 808nm Diode Laser handle optional;
  • ② High technology best thermostatic water cooling system —-Water Cooling + Semiconductor ③ Cooling ensure long working time;
  • ④ More than 5, 000, 000 shots ensure longer lifetime than the other hair removal machine;
  • ⑤ Continuous working, energy density reaches 120J/cm2 maximumly;
  • ⑥ No pigmentation limitation, used for any skin type;
  • ⑦ Terminator hair removal system uses penetrate technology and skin absorbs less laser energy;
  • ⑧Self-checking and auto-protection mechanism to ensure the stability;
  • ⑨ Superior con nuous wave method provides homogenized energy on each pulse.

Advantage

Certification: Medical CE, CFDA approved;

Safety: Gold Standard 808nm laser with reliable function, almost no skin scattering, no harm to the skin and sweat glands, no scar, no any side-effect;

Quick: Big spot size 12X12mm2, up to 10 Hz repetition rate, Max output power 500W, high effect and quick treatment on big treatment area with FHR mode (On-Motion), Reduce treatment time for original 1/5;

Efficiency: 808nm diode laser hair removal system uses the most advanced technology,More assured the mechanism performance, clinical results visible and safety;

Slight Pain: Sapphire temperature cool down -5°C, can make momentary epidermal anesthesia, no any painless during, increases comfort during treatment;

Facilitles: Intelligent 10.4” touch display screen, easy to operate;

Long Laser Width: Effective for the hair follicles produce heat accumulation, Permanent hair removal.

Description



Air Cooling System

Water System

1. It’s well-known that the cooling system is very important for L808-M;

2. Professional air duct system, strong cooling capacity, 8 hours of continuous working.

L808-M used the most advanced micro-channels diode laser.

L808-M is developed with two Filters to ensure water quality:

1. Particle filter, which could filter the materials / impurities in the water in case the micro-channel is blocked;

2. Ion filter, it could be used to attach the metal ions in the water to further remove them from water to avoid short circuit and burnt of the laser module. That is the Auto-Purify Ability.

Electricity System









Powerful & Stable Laser Output.
L808-M uses Dual Pulses Technology increase safety, it uses first pulse to pre-heat hair follicle and tissues around to 40℃, uses the second pulse to destroy dermal papilla cells, and then prevent hair regeneration. It is better for high repetition rate high-power-laser output & above 500W(output power) CW laser.

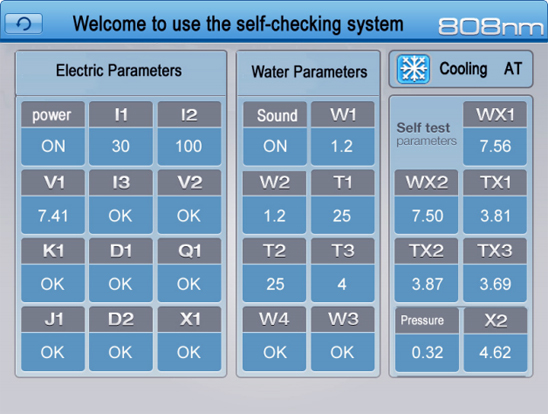

Self-checking System







1. Intelligent Cooling Mode (AT, MT) can be automatically transformed;
2. Accurate control the treatment target temperature;
3. Free setting treatment area;
4. Pre-set treatment modalities;
5. HANDPIECE counting.

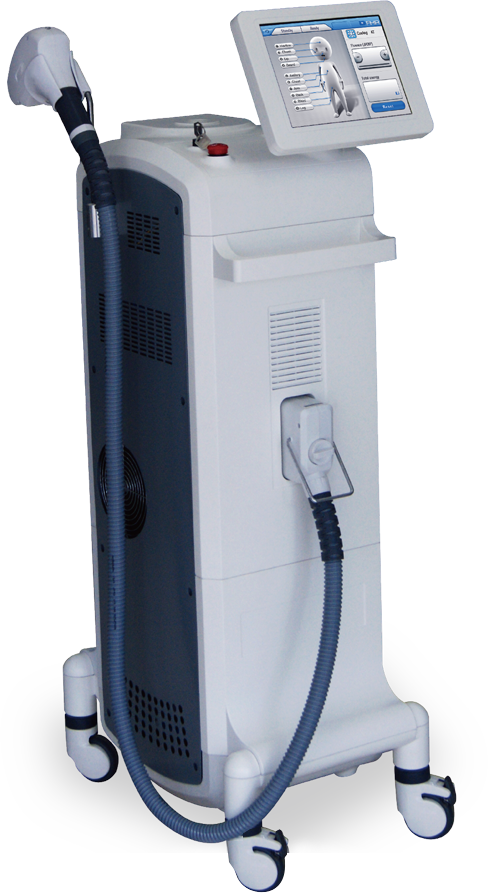

Technical Specification
LCD Screen: 10.4 Inches TFT Color Touch Screen
Light Source: Diode Laser
Laser Wavelength: 808nm ± 5nm
Frequency: 1-10Hz
Work Mode: FHR (On-Motion) / HR (Traditional) / SR
Energy Density: Max 120 J/cm²(HR ) / 25 J/cm² (FHR)
Laser Power: Max 500W
Tip: 12mm x 12mm
Cooling: Contacting cooling at 4°C
Rated Input Power: <1400W
Power Supply: AC220V, 50Hz / AC110V, 60Hz
Net Weight: 55kg
Equipment Size: 380mm × 540mm × 1200mm
