Advantage





  1. Instant Result, Safe&Comfortable
  2. No Epidermal Anesthesia & No Invasive
  3. Multiple Frequency: 3 different radio frequency adjustable;

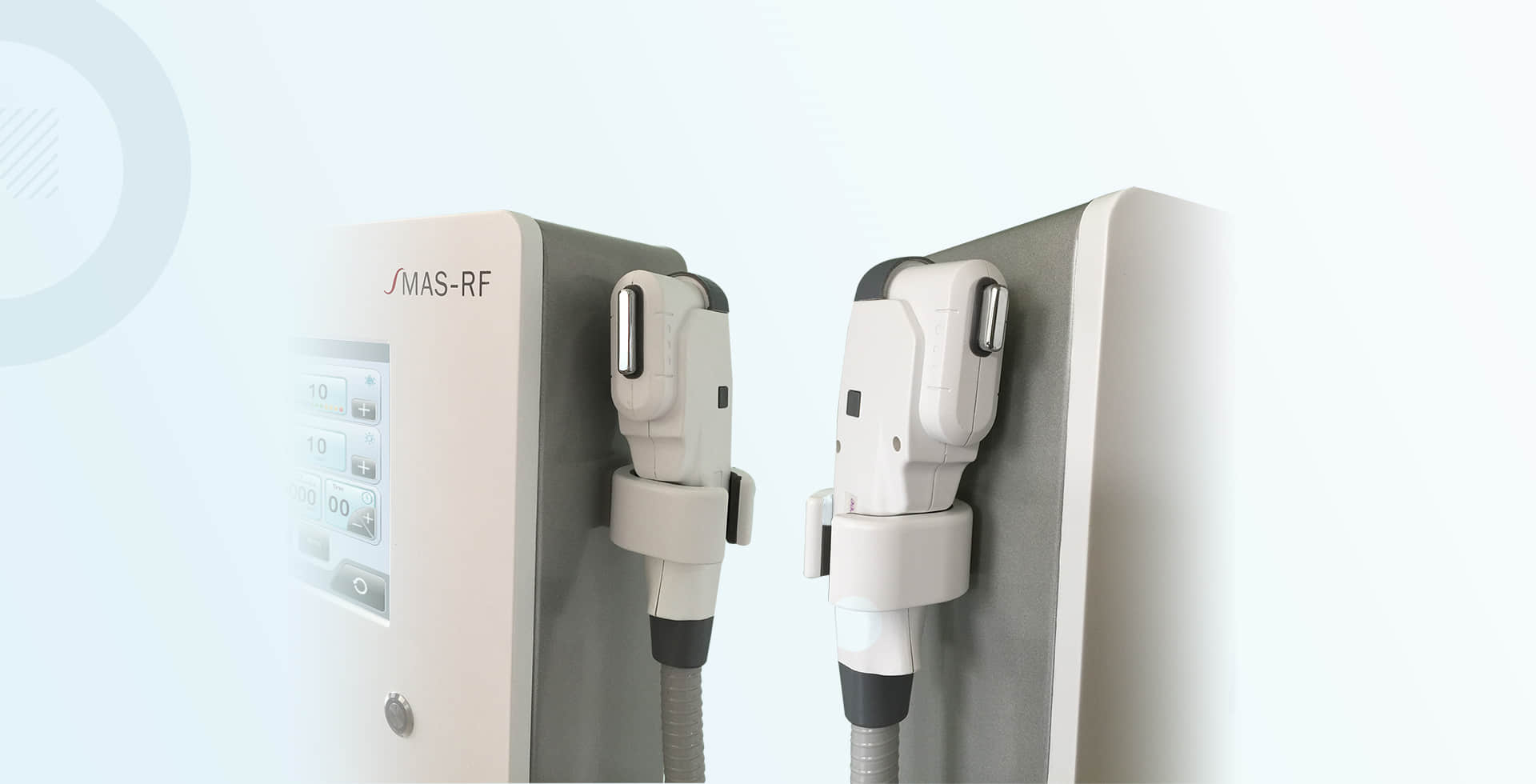

  4. Two Handpieces: 25x8mm & 40x8mm spot size adaptable to different areas of face;
  5. Treatment Result: Skin tightening instantly, face shaping & wrinkle improvement with more and more healthy tone and elasticity







Working Mechanism





SMAS RF Shaper adopts 3 different radio frequency penetrating into different skin layers: Epidermis, Dermis (1.5~2.5mm), Hypodermis, Fascia (3.5~4mm) , specially directly working on SMAS fascia layer in a invasive way which only plastic surgery can treat nowadays;

The thermal effect of radio frequency acts on the collagen fiber and makes it heated which achieves the abvious and instant results of shrinking, rebirth and rearrangement of collagen;

Meanwhile 3 different radio frequency can precisely work on and improve the subcutaneous structure from deep to light layers and build a new network of collagen fibers.That greatly helps aged and impaired collagen layer regain recovery and elasticity as well as makes skin lifted and wrinkle improved.

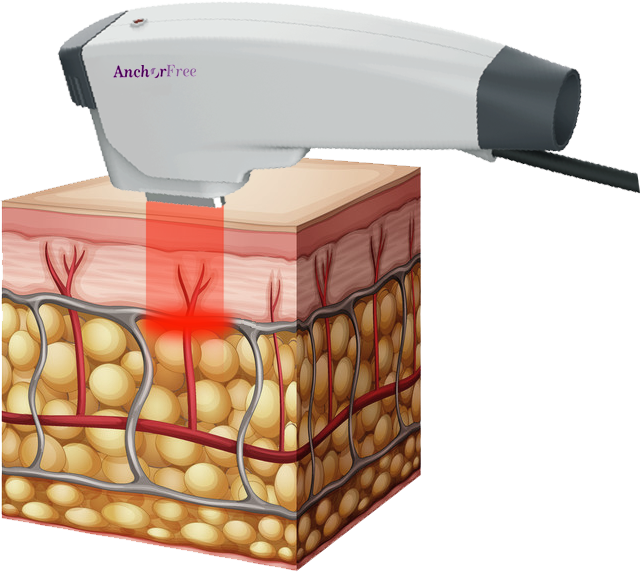

Precise Penetration Depth Makes Treatment More Safe

Different frequency energy can treat different depth of skin layers
and specially can work on SMAS fascial layer directly.
(1.5mm / 2.5mm / 4.0mm)
Technical Specification
Screen: 10.4 Inch Color Touch Screen
Handpiece Type: 2
Tip Size: 25mm×8mm / 40mm×8mm
Tip Material: Titanium Alloy
Handpiece Connection: Fast Connected
Energy Level Scope: 1-10 (Adjustable)
Energy Density: 7 J/cm3 – 70 J/cm3
Pulse Width: 4-5s (Default) / Customized Mode
Skin Penetration Depth: 1.5mm / 2.5mm / 4.0mm
Energy Level Scope of Cooling: 1-10 (Adjustable)
Temperature Scope of Tips: -10 0C ~ 25 0C
Power Supply: AC220V ± 10%, 50Hz ± 1Hz /
AC110V ± 10%, 60Hz ± 1Hz
Rated Input Power: 620VA
Net Weight: 35kg
Physical Dimension: 400mm × 550mm × 1100mm
